Product Description
Features:
Remark: 380V Rated input voltage is optional.
Operation Instruction：

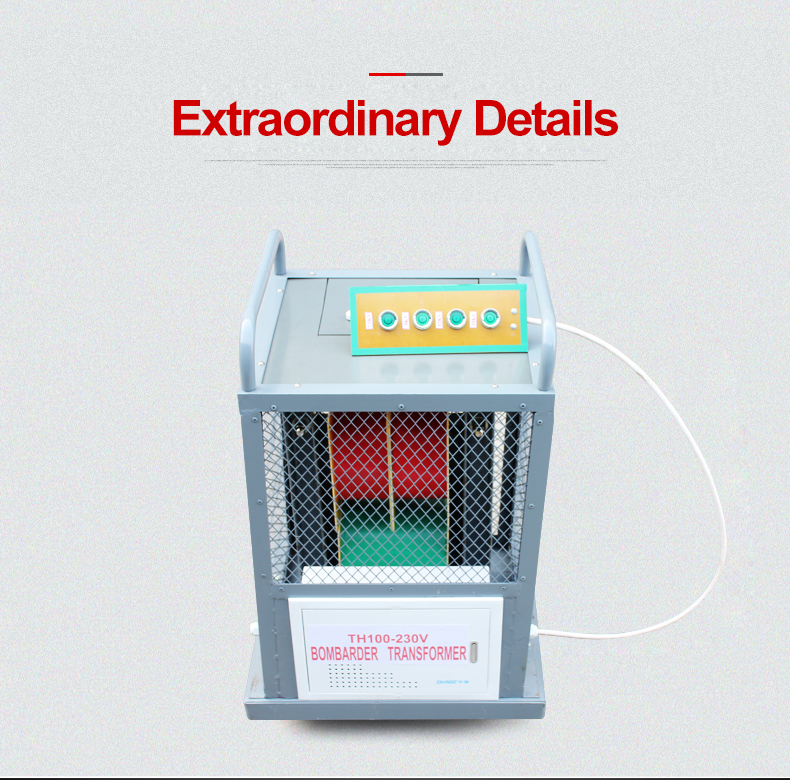

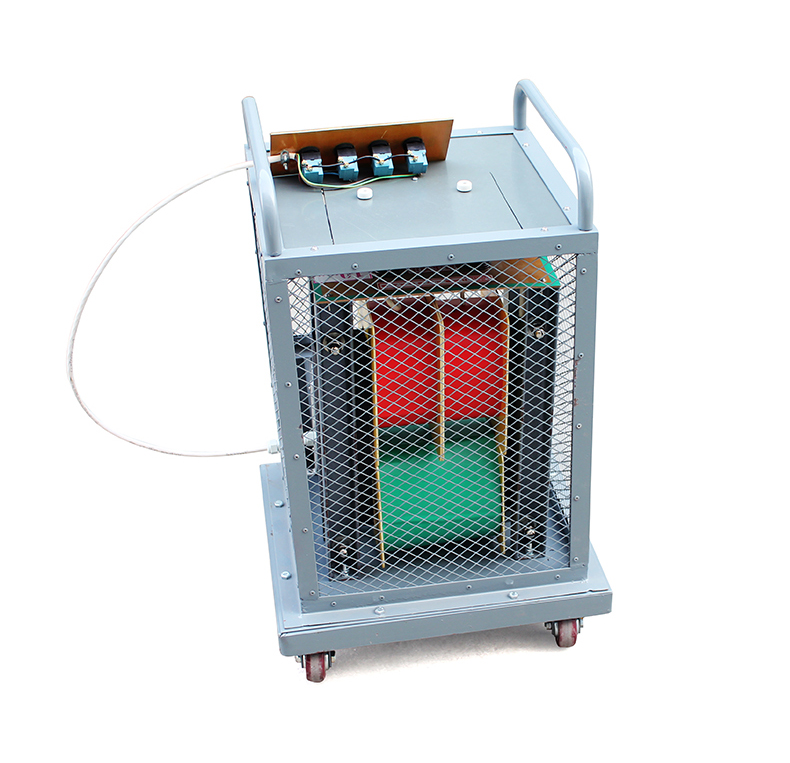

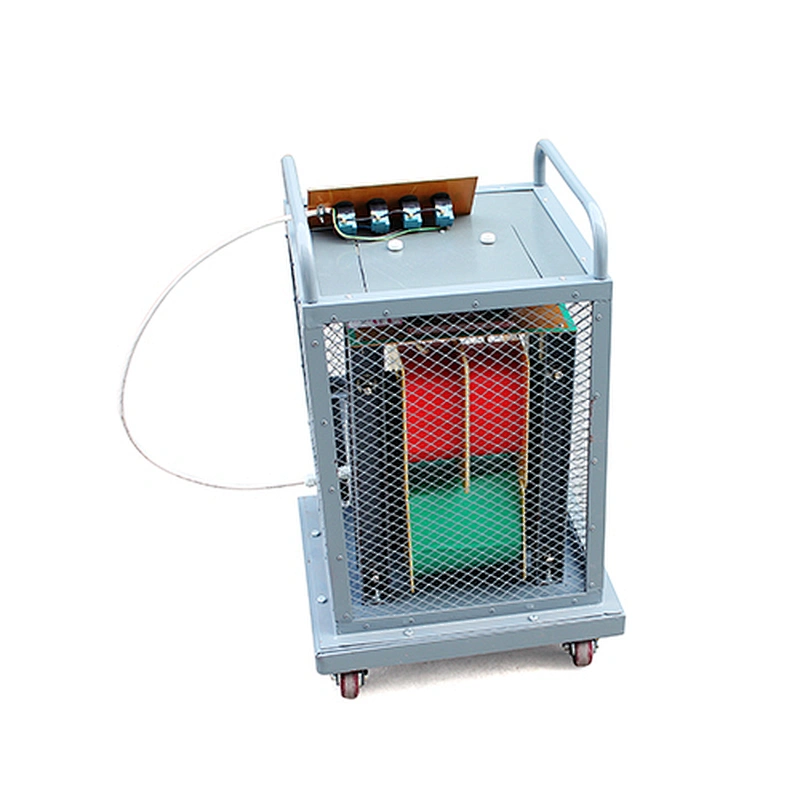

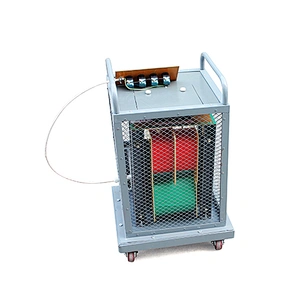

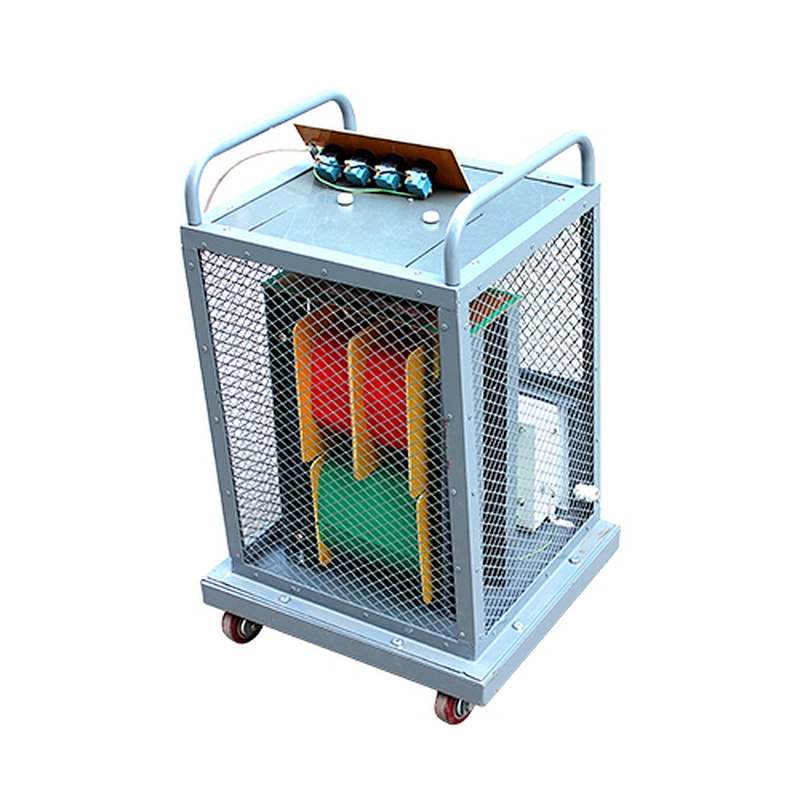

Our company is aspecializedmanufacturer of neon transformer, we has a very long history in manufacturing bombarder neon transformer. Which features great power, firm structure and realiable quality.

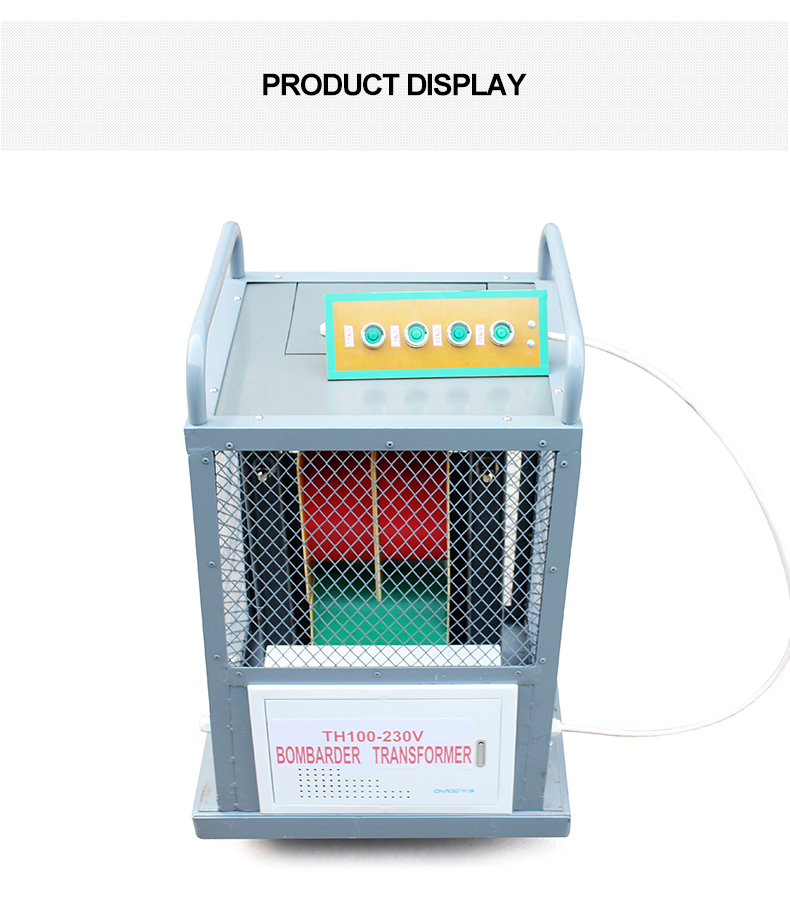

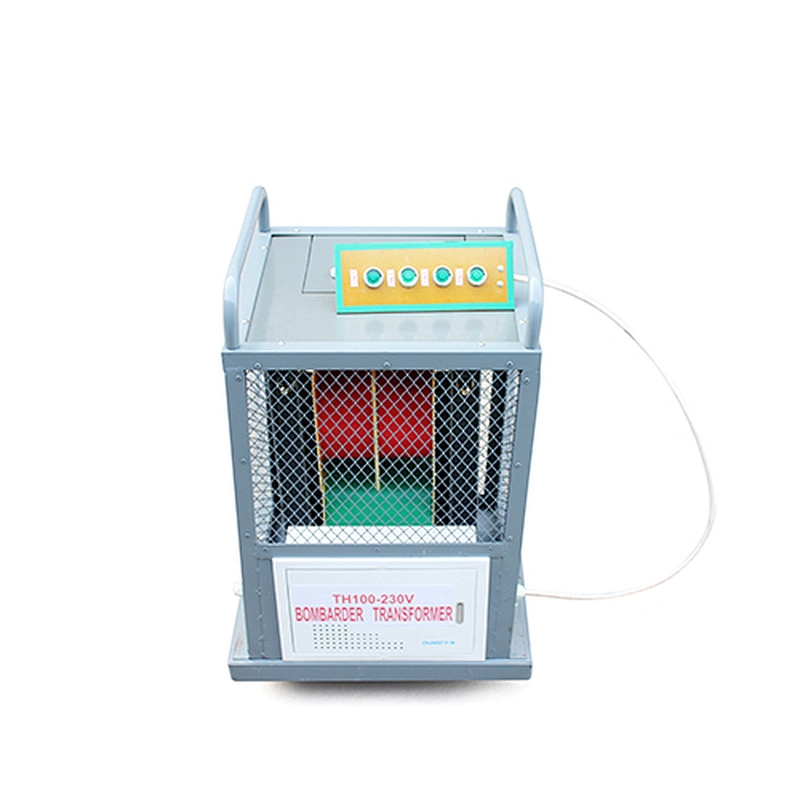

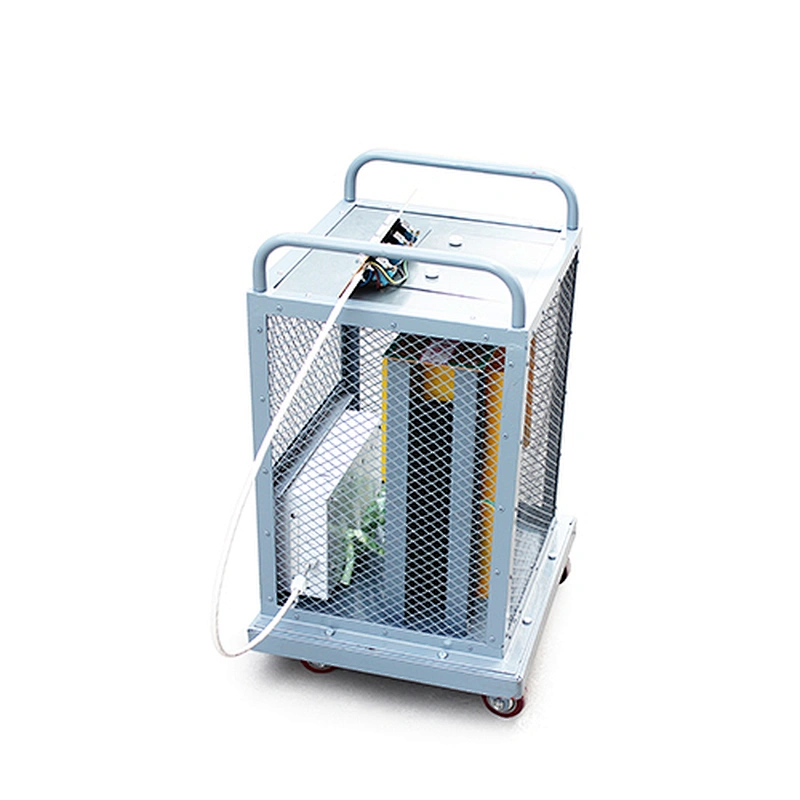

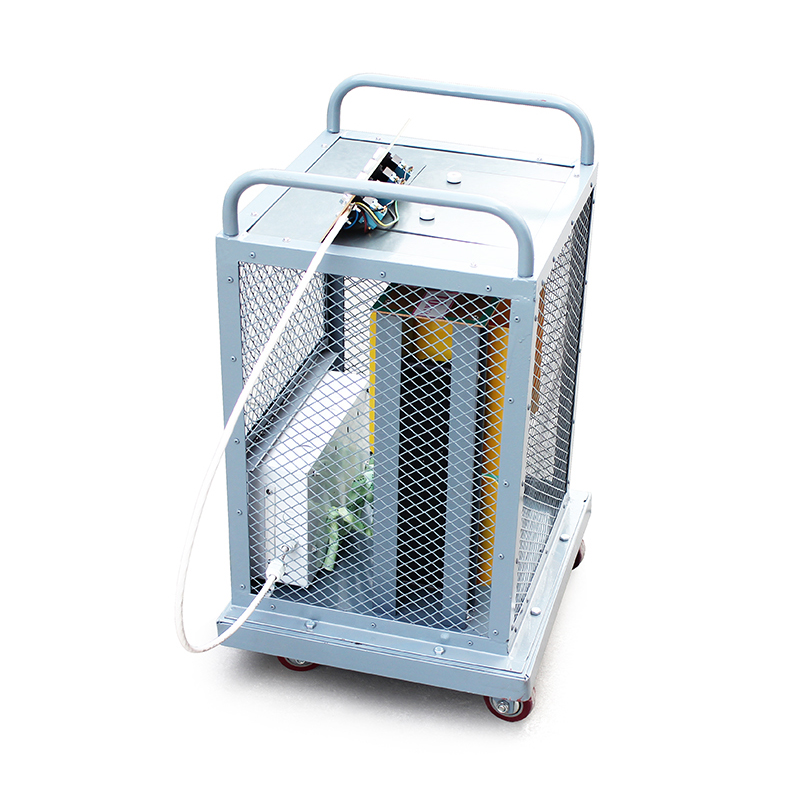

This bombarder neon transformer is one of the most indispensable equipment to make neon , and its main role is to clear and remove the impurities which adsorbed in the neon tube.

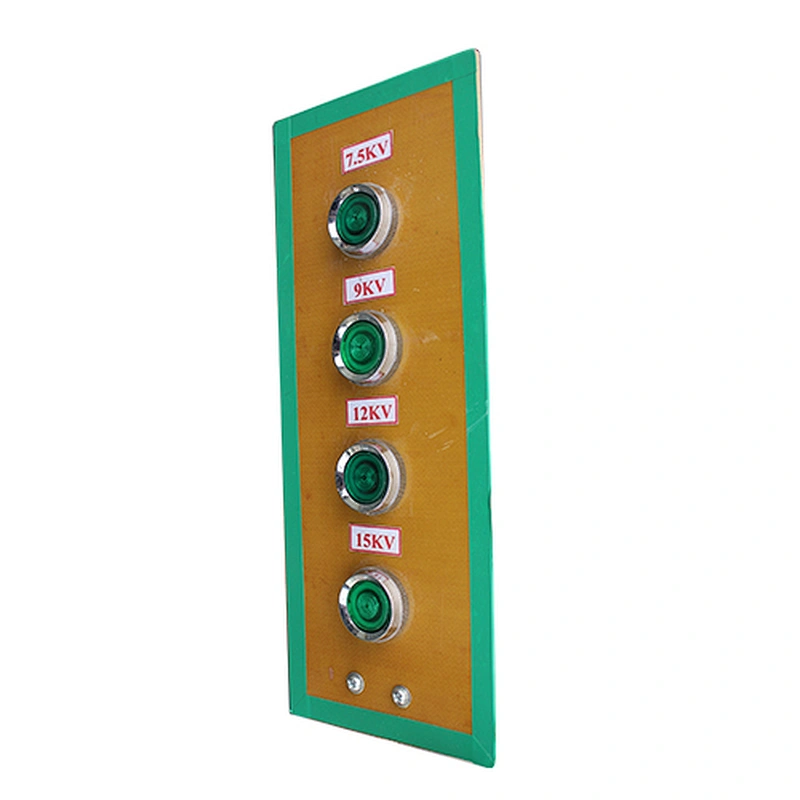

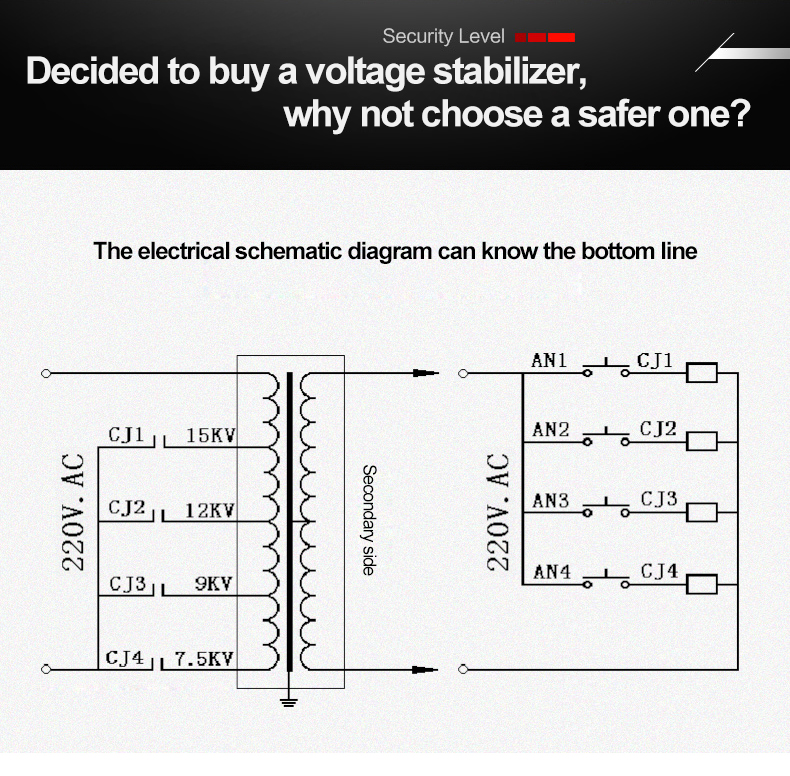

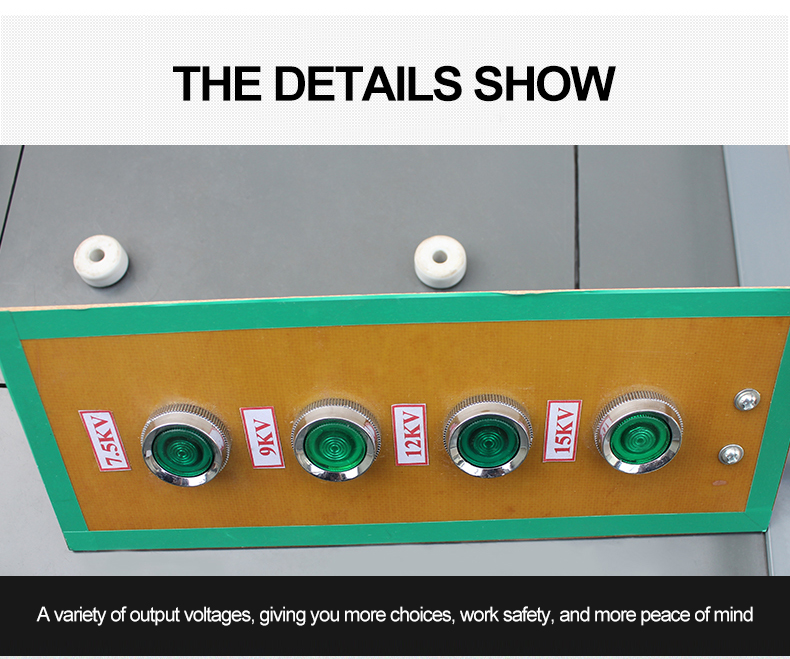

Connect the rated voltage to the transformer’sinput terminal,then use the high-voltage cable to connect the high voltage output terminal and the tube which are ready for bombardment, Plug in the power switch, then select the corresponding voltage lever and press the related button, the bombarder neon transformer come to start the bombardment to the tube.
Features:
- The output voltage is fixed.
- Neon workbench, vacuum pump and other equipment are required.
- The weight and volume are about the same. Gross weight: 120KG Net weight: 100KG Volume: 0.8CBM
- Need to understand the process of making neon lights. (You can download the manual in the download column)

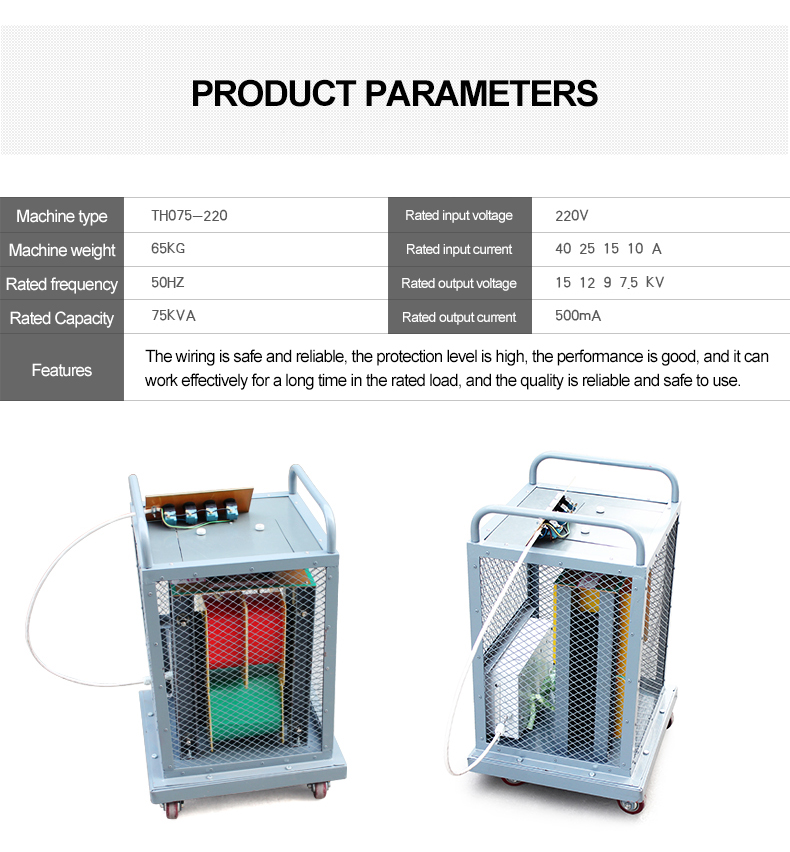

| Model | Frequency | Output | Output current | Capacity |

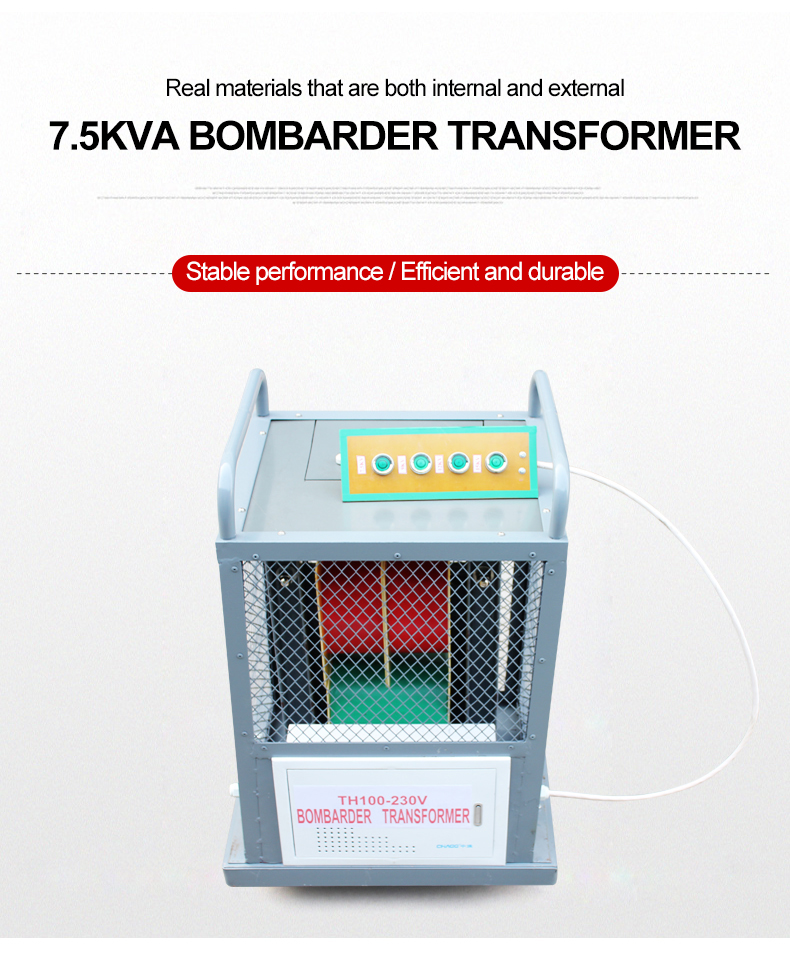

| TH075-220(TH075-380) | 50Hz(60Hz) | 7.5KV,9KV,12KV,15KV | 500mA(max) | 7.5KVA |
| TH090-220(TH090-380) | 50Hz(60Hz) | 7.5KV,9KV,12KV,15KV | 660mA(max) | 10KVA |
| TH120-220(TH120-380) | 50Hz(60Hz) | 7.5KV,9KV,12KV,15KV | 1000mA(max) | 15KVA |
| TH150-220(TH150-380) | 50Hz(60Hz) | 7.5KV,9KV,12KV,15KV | 14000mA(max) | 21KVA |
Operation Instruction：
Our company is aspecializedmanufacturer of neon transformer, we has a very long history in manufacturing bombarder neon transformer. Which features great power, firm structure and realiable quality.
This bombarder neon transformer is one of the most indispensable equipment to make neon , and its main role is to clear and remove the impurities which adsorbed in the neon tube.
Connect the rated voltage to the transformer’sinput terminal,then use the high-voltage cable to connect the high voltage output terminal and the tube which are ready for bombardment, Plug in the power switch, then select the corresponding voltage lever and press the related button, the bombarder neon transformer come to start the bombardment to the tube.
