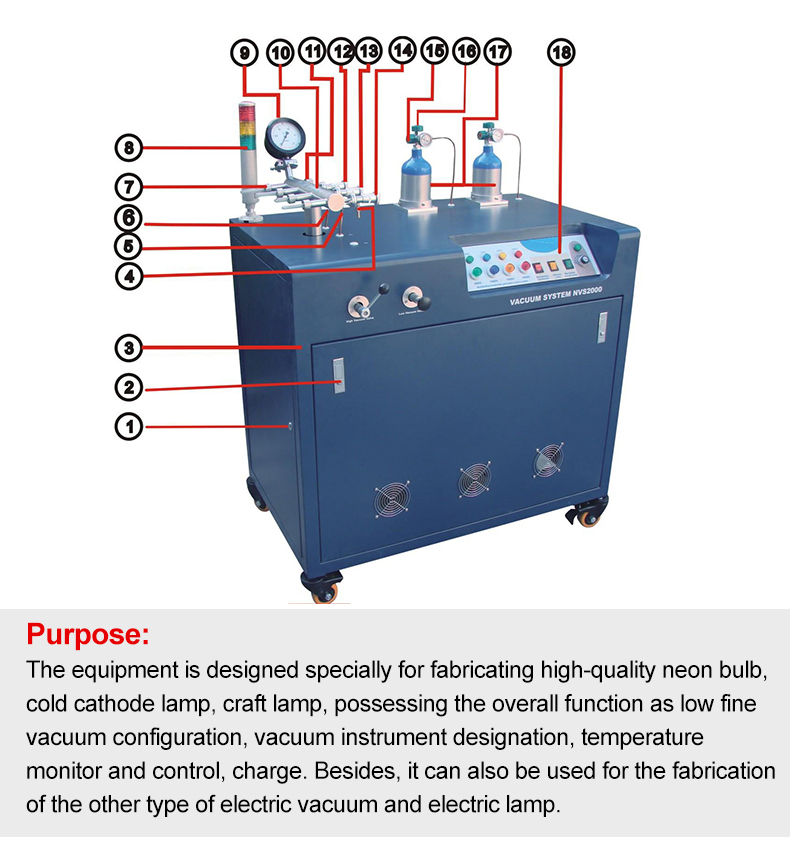

Purpose:

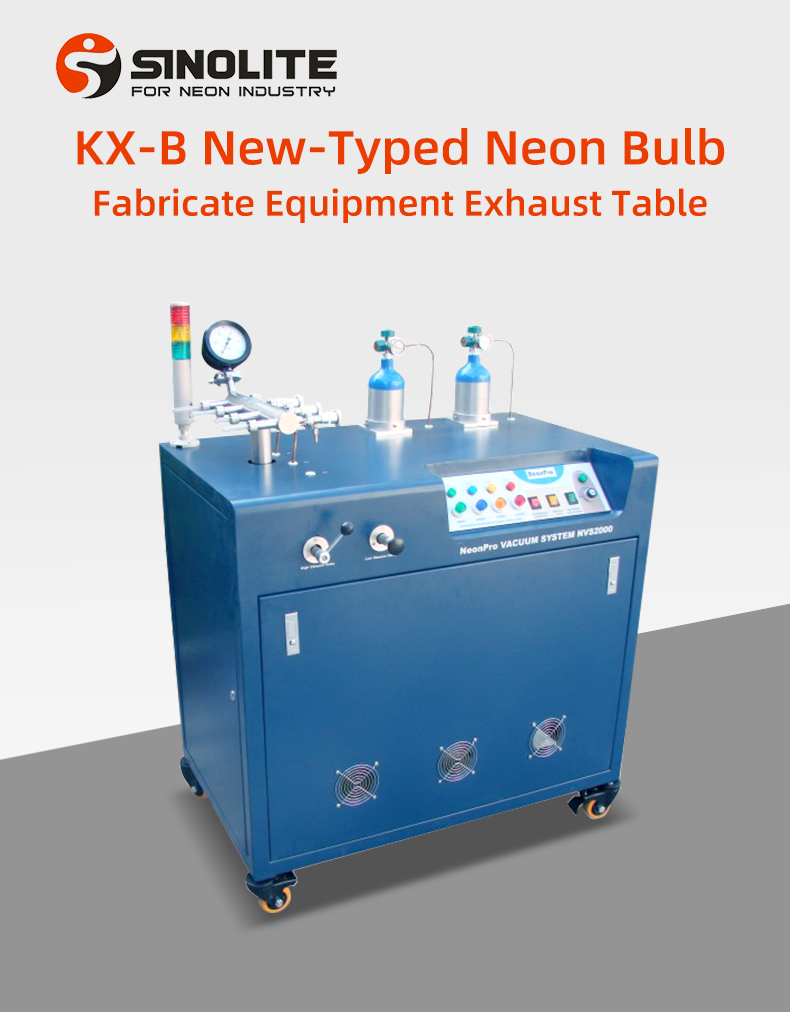

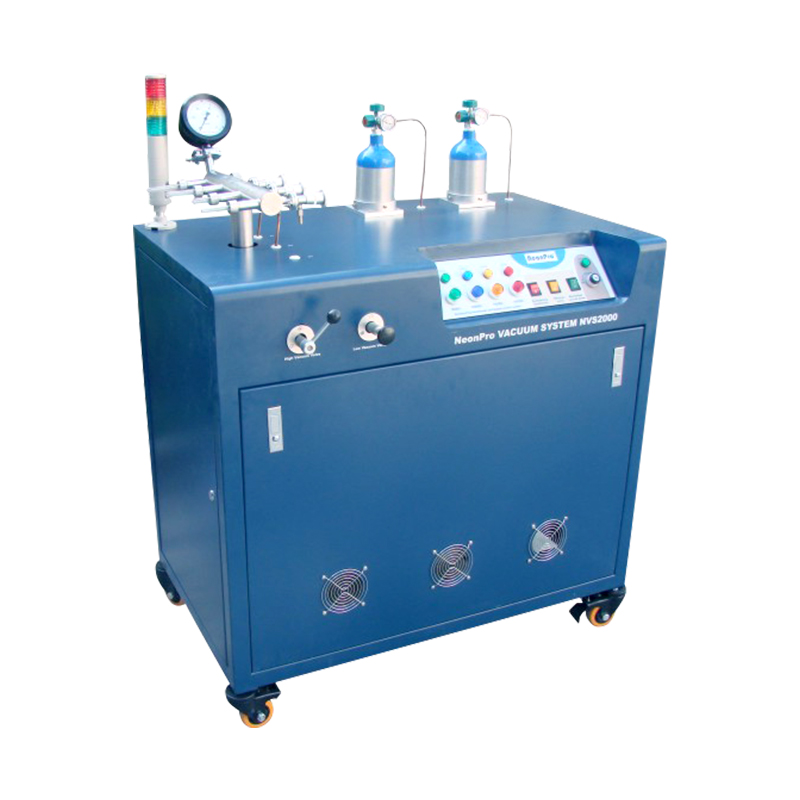

The equipment is designed specially for fabricating high-quality neon bulb, cold cathode lamp, craft lamp, possessing the overall function as low fine vacuum configuration, vacuum instrument designation, temperature monitor and control, charge. Besides, it can also be used for the fabrication of the other type of electric vacuum and electric lamp.

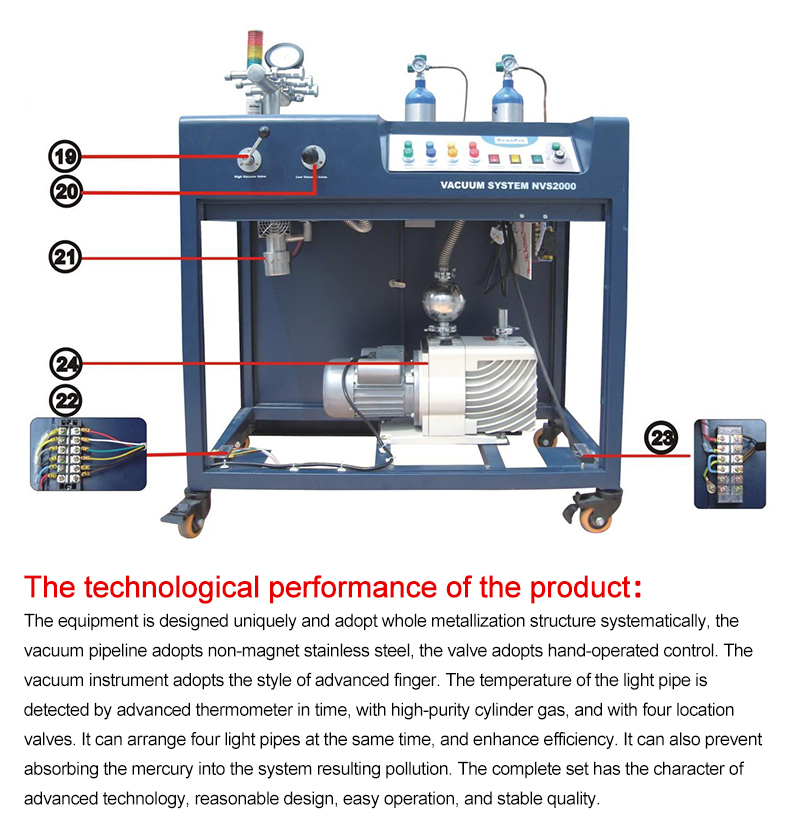

The technological performance of the product：

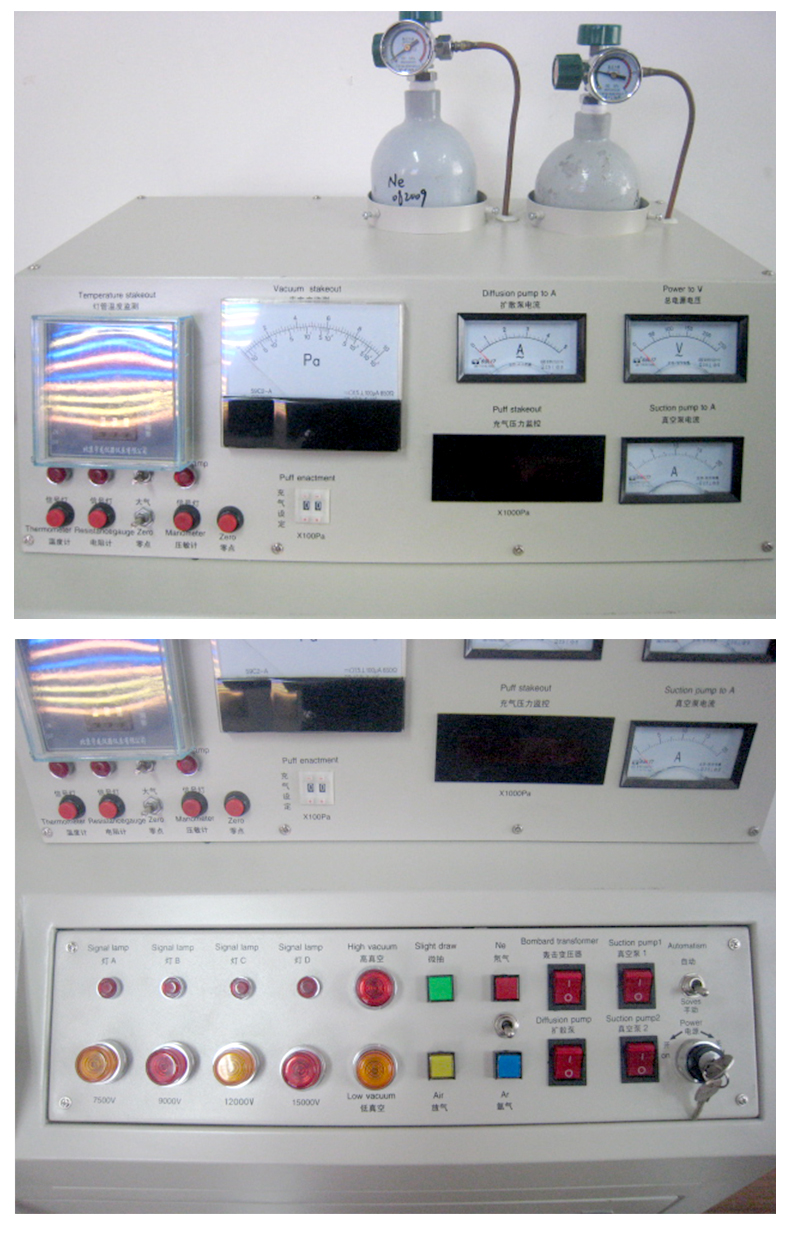

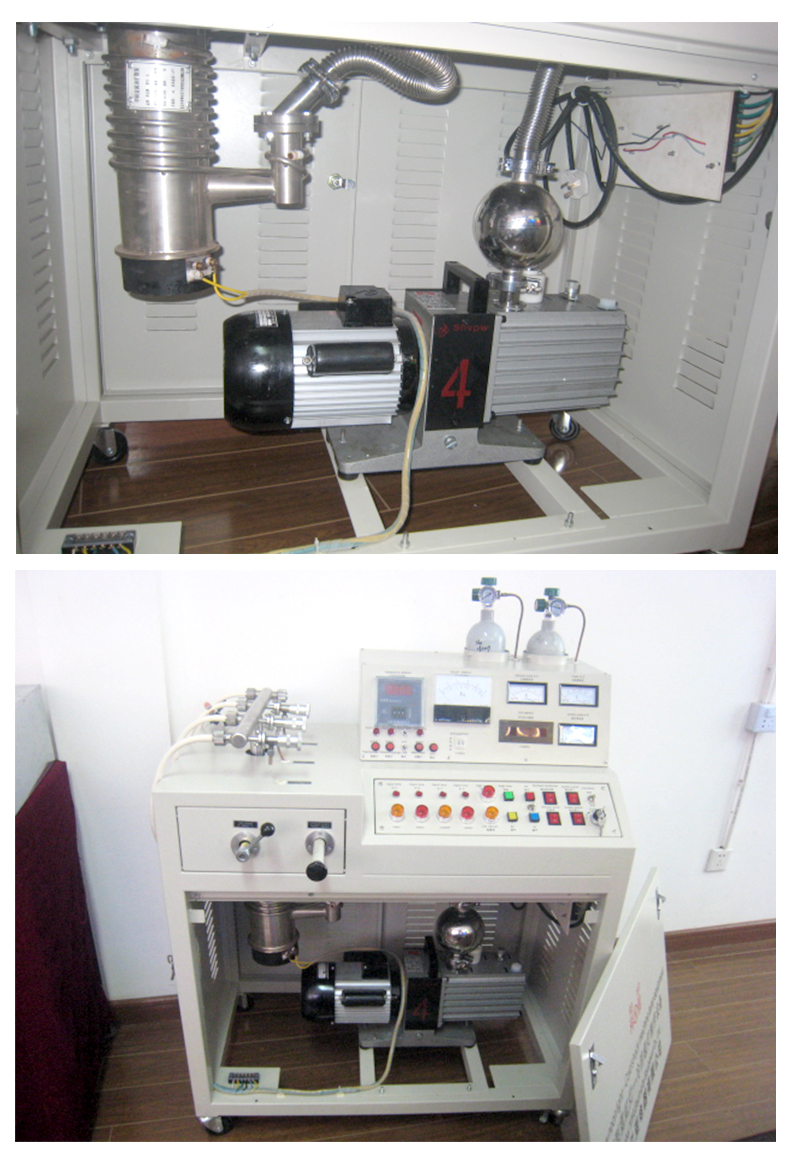

The equipment is designed uniquely and adopt whole metallization structure systematically, the vacuum pipeline adopts non-magnet stainless steel, the valve adopts hand-operated control. The vacuum instrument adopts the style of advanced finger. The temperature of the light pipe is detected by advanced thermometer in time, with high-purity cylinder gas, and with four location valves. It can arrange four light pipes at the same time, and enhance efficiency. It can also prevent absorbing the mercury into the system resulting pollution. The complete set has the character of advanced technology, reasonable design, easy operation, and stable quality.

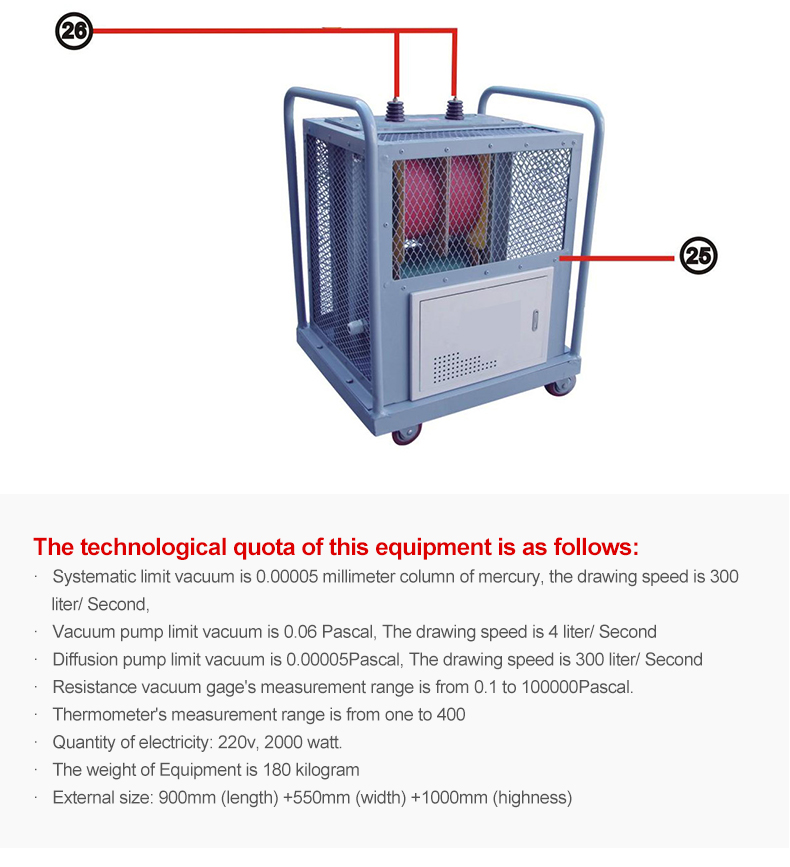

The technological quota of this equipment is as follows:
a)Systematic limit vacuum is 0.00005 millimeter column of mercury, the drawing speed is 300 liter/ Second,
b)Vacuum pump limit vacuum is 0.06 Pascal, The drawing speed is 4 liter/ Second
c)Diffusion pump limit vacuum is 0.00005Pascal, The drawing speed is 300 liter/ Second
d)Resistance vacuum gage's measurement range is from 0.1 to 100000Pascal.
e)Thermometer's measurement range is from one to 400
f)Quantity of electricity: 220v, 2000 watt.
g)The weight of Equipment is 180 kilogram
h)External size: 900mm (length) +550mm (width) +1000mm (highness)
*The relevant operation details can be obtained from the data download
