Product Description
Quick Details
Specification:
230V 50Hz 30mA Series CE Certification Transformer (different input voltage and frequency are optional)
Quick Details

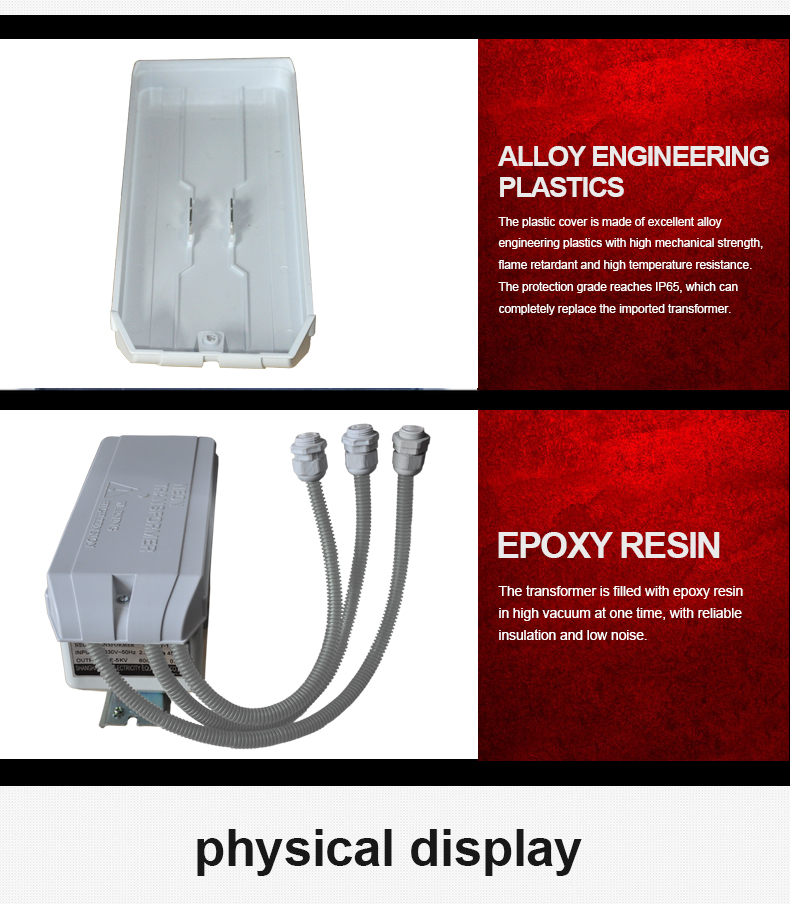

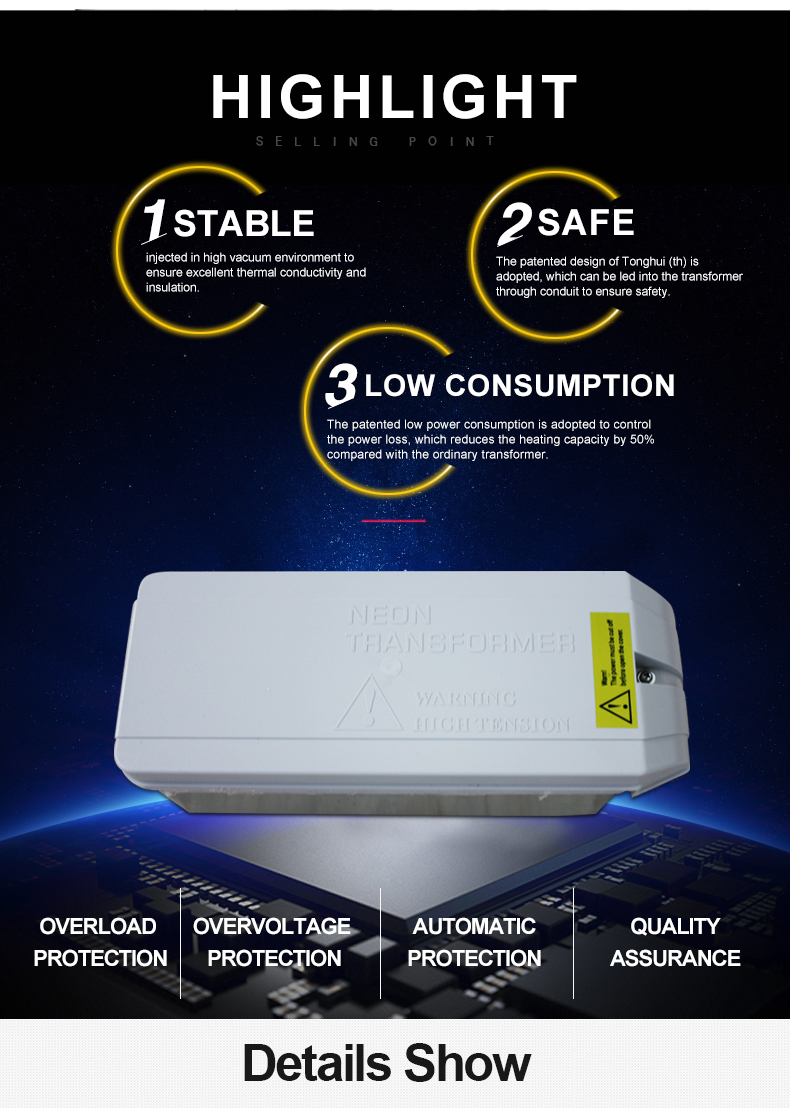

- Impregnation under high vacuum with epoxy resin with filling compounds
- Patented magnetic core at low consumption

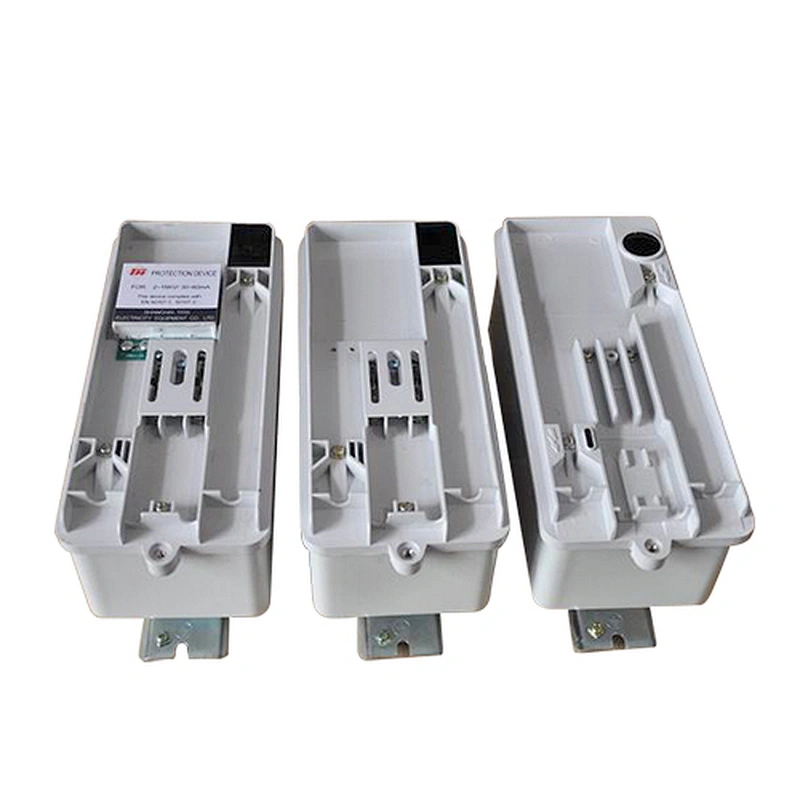

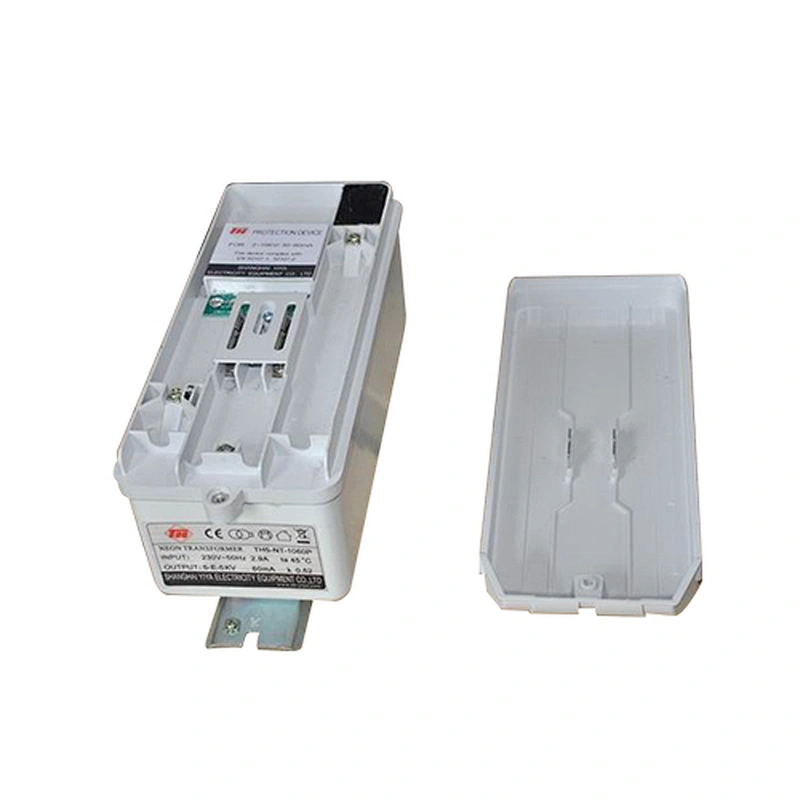

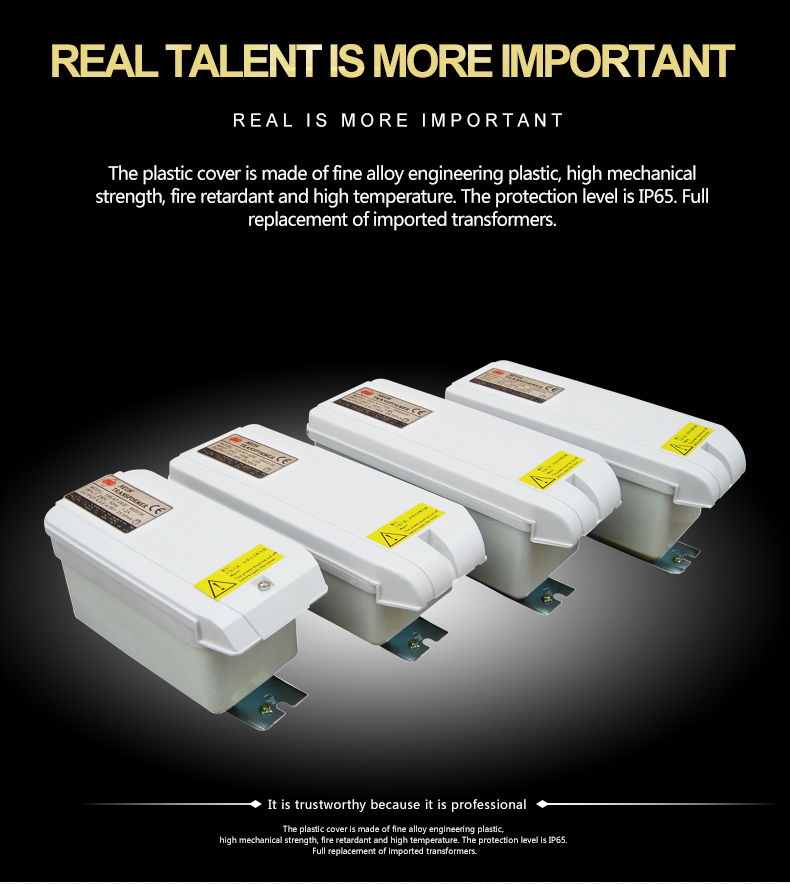

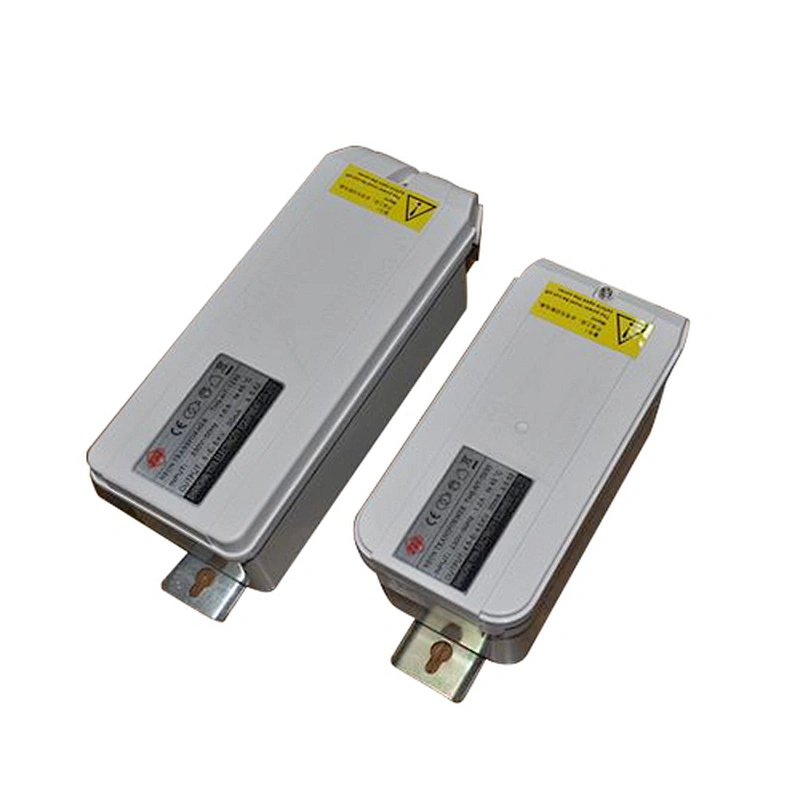

- Metal box and coated with polyester powders

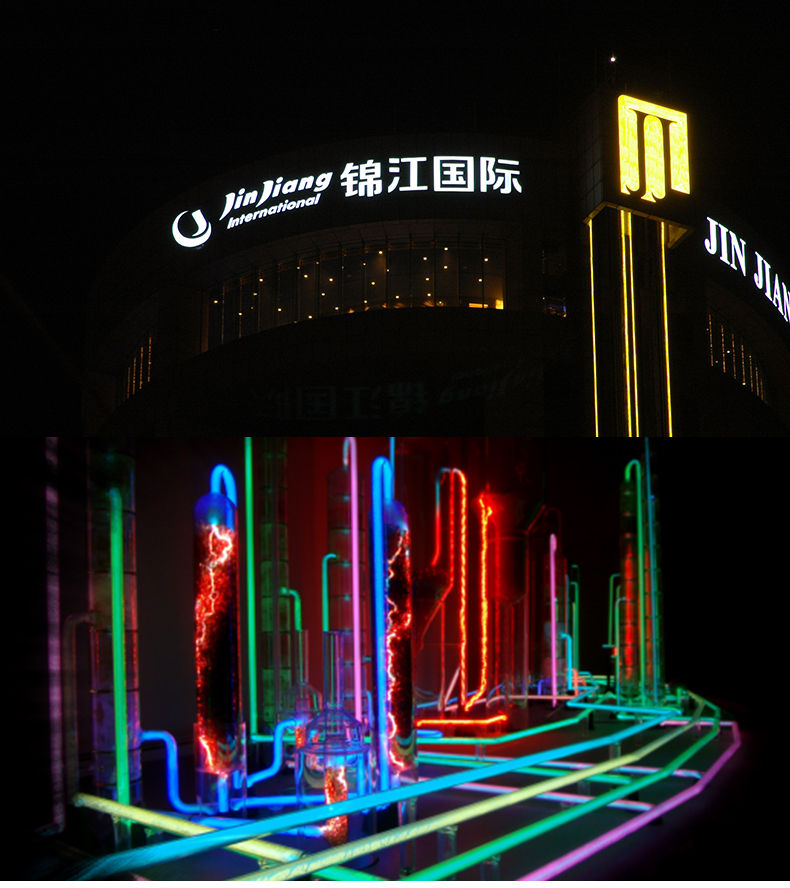

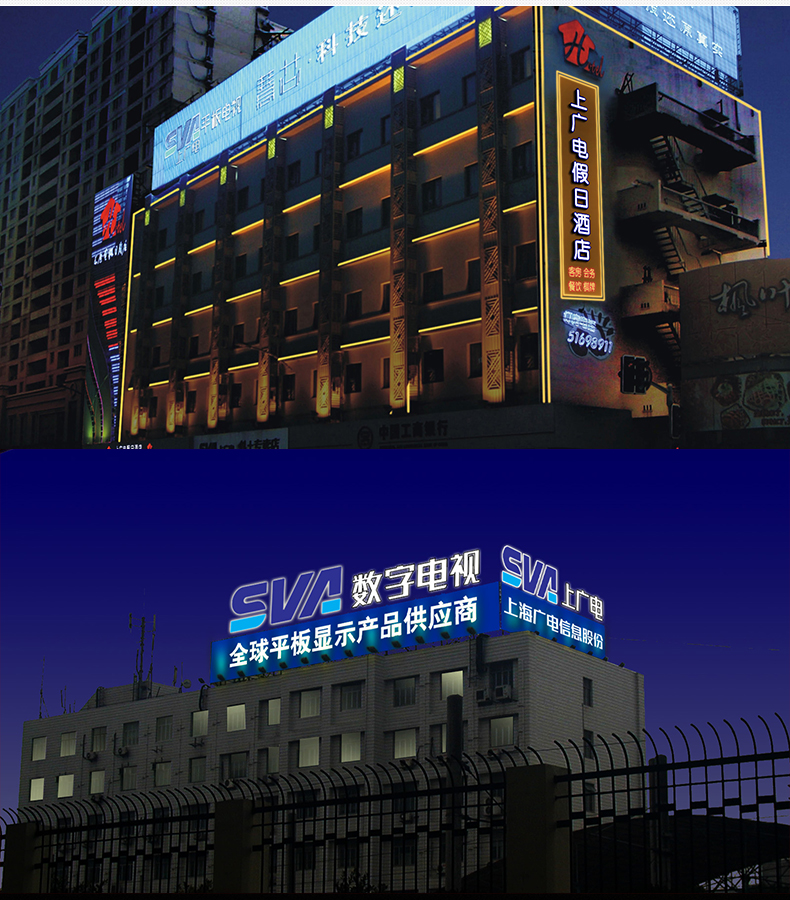

- Suitable for neon and also Argon tubing

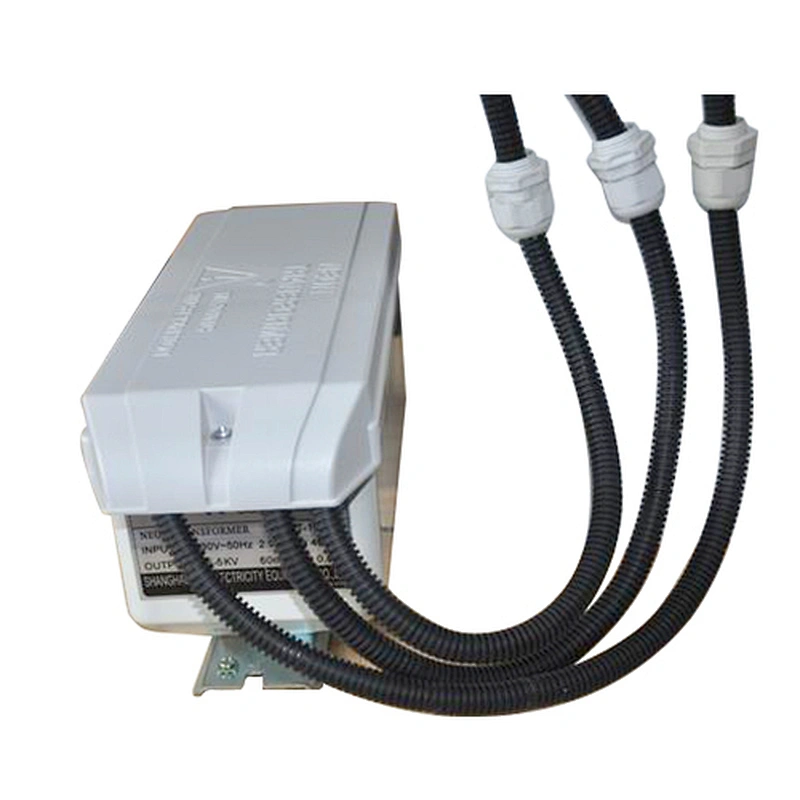

- Traditional coil and core transformer.
- Epoxy resin filled and vacuum potted.
- High reliability and long life.
- passed CE certification
- Patent No.:ZL2005300333887
Payment:
We accept Visa/MC/Discover/Amex through www.Paypal.comSpecification:
230V 50Hz 30mA Series CE Certification Transformer (different input voltage and frequency are optional)

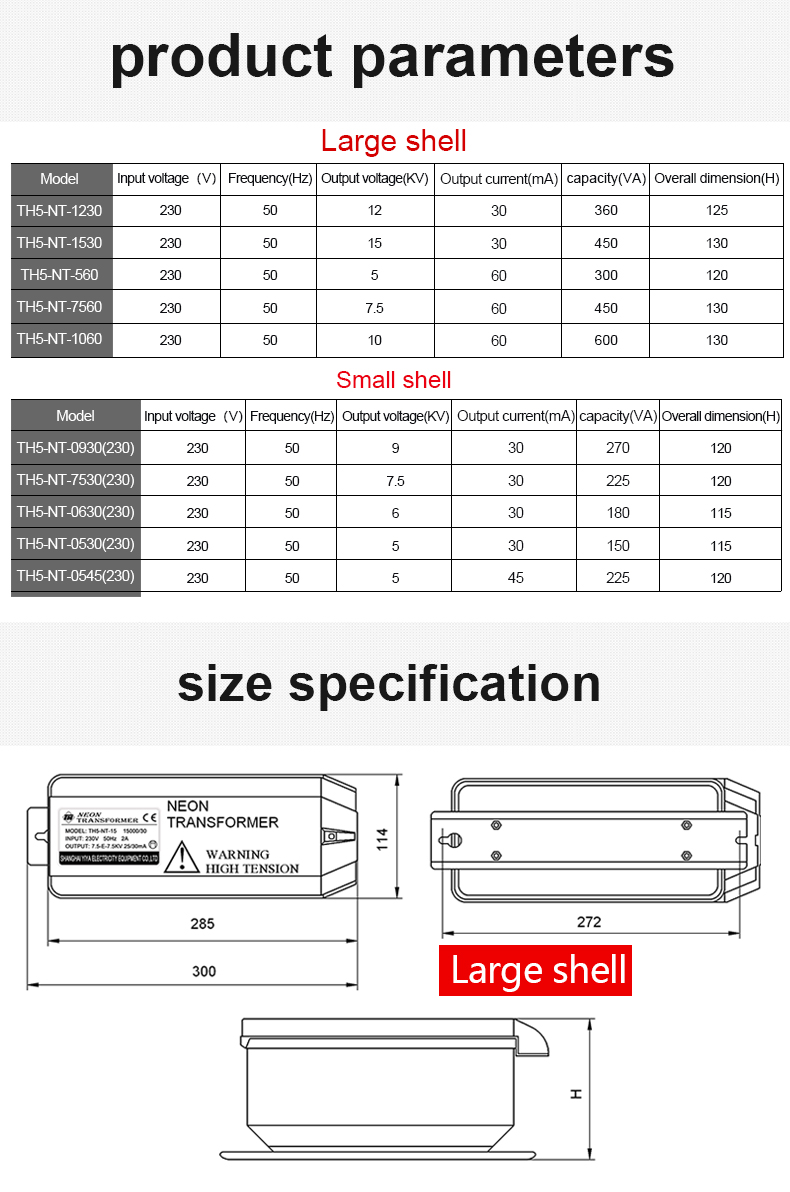

| Model | Input voltage(V) | Input current(A) | Frequency(Hz) | Output Voltage(KV) | Output Voltage(mA) | Watts(VA) |
| TH5-NT-1530(230) | 230 | 2 | 50 | 15 | 30 | 450 |
| TH5-NT-1230(230) | 230 | 1.6 | 50 | 12 | 30 | 360 |
| TH5-NT-1030(230) | 230 | 1.32 | 50 | 10 | 30 | 300 |
| TH5-NT-7530(230) | 230 | 1 | 50 | 7.5 | 30 | 225 |
| TH5-NT-0630(230) | 230 | 0.8 | 50 | 6 | 30 | 180 |
| TH5-NT-0530(230) | 230 | 0.7 | 50 | 5 | 30 | 150 |
| TH5-NT-1245(230) | 230 | 2.4 | 50 | 12 | 45 | 600 |
| TH5-NT-1045(230) | 230 | 2 | 50 | 10 | 45 | 450 |
| TH5-NT-0945(230) | 230 | 1.8 | 50 | 9 | 45 | 405 |
| TH5-NT-7545(230) | 230 | 1.5 | 50 | 7.5 | 45 | 337.5 |
| TH5-NT-0545(230) | 230 | 1 | 50 | 5 | 45 | 225 |
| TH5-NT-1060(230) | 230 | 2.6 | 50 | 10 | 60 | 600 |
| TH5-NT-0960(230) | 230 | 2.4 | 50 | 9 | 60 | 540 |
| TH5-NT-7560(230) | 230 | 2 | 50 | 7.5 | 60 | 450 |
| TH5-NT-0660(230) | 230 | 1.6 | 50 | 6 | 60 | 360 |
| TH5-NT-0560(230) | 230 | 1.32 | 50 | 5 | 60 | 300 |
