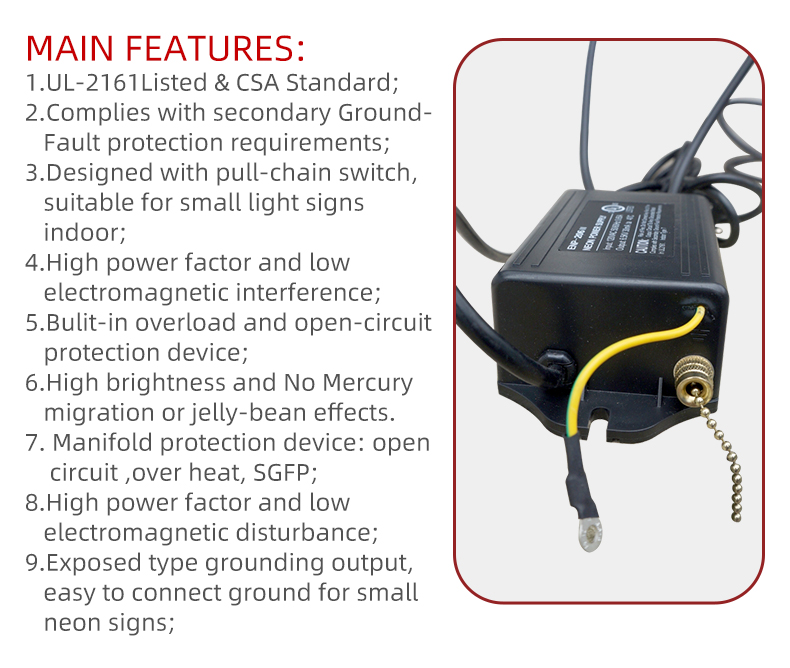

Main Features:
1.UL-2161Listed & CSA Standard;
2.Complies with secondary Ground-Fault protection requirements;
3.Designed with pull-chain switch, suitable for small light signs indoor;
4.High power factor and low electromagnetic interference;
5.Bulit-in overload and open-circuit protection device;
6.High brightness and No Mercury migration or jelly-bean effects.
7. Manifold protection device: open circuit ,over heat, SGFP;
8.High power factor and low electromagnetic disturbance;

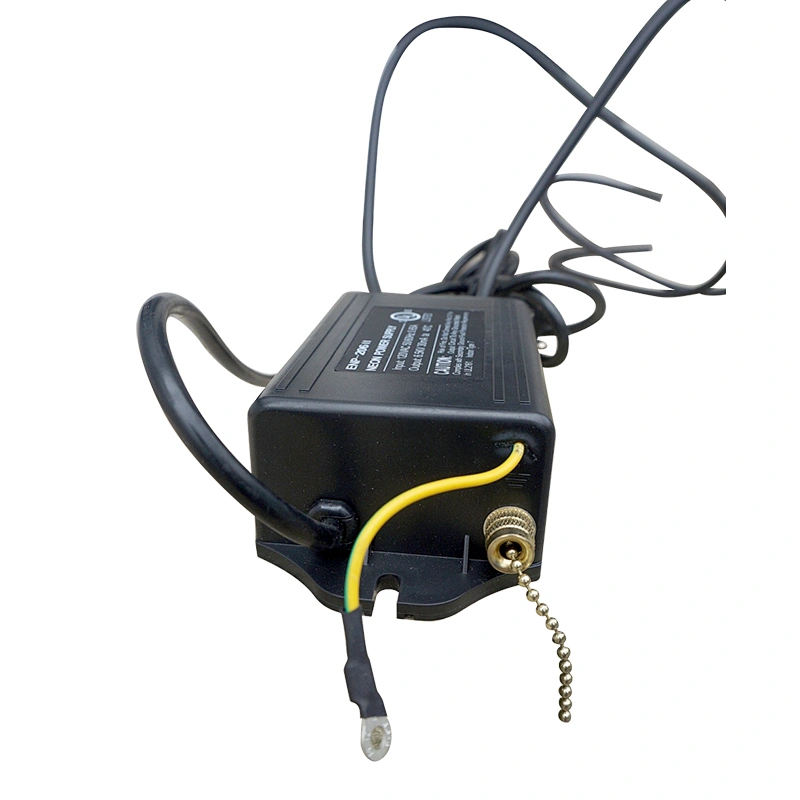

9.Exposed type grounding output, easy to connect ground for small neon signs;
Specifications：
The loaded lamp (tube) length can be adjusted to the maximum value listed below:
1.UL-2161Listed & CSA Standard;
2.Complies with secondary Ground-Fault protection requirements;
3.Designed with pull-chain switch, suitable for small light signs indoor;
4.High power factor and low electromagnetic interference;
5.Bulit-in overload and open-circuit protection device;
6.High brightness and No Mercury migration or jelly-bean effects.
7. Manifold protection device: open circuit ,over heat, SGFP;
8.High power factor and low electromagnetic disturbance;
9.Exposed type grounding output, easy to connect ground for small neon signs;

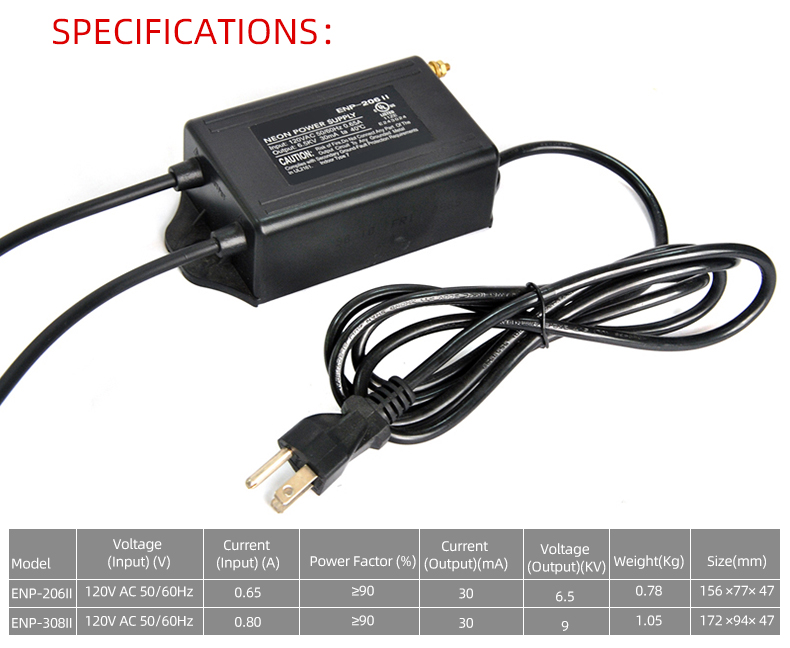

Specifications：
| Model | Voltage (Input) (V) | Current (Input) (A) | Power Factor (%) | Current (Output) (mA) | Voltage (Output) (KV) | Weight (Kg) | Size (mm) |

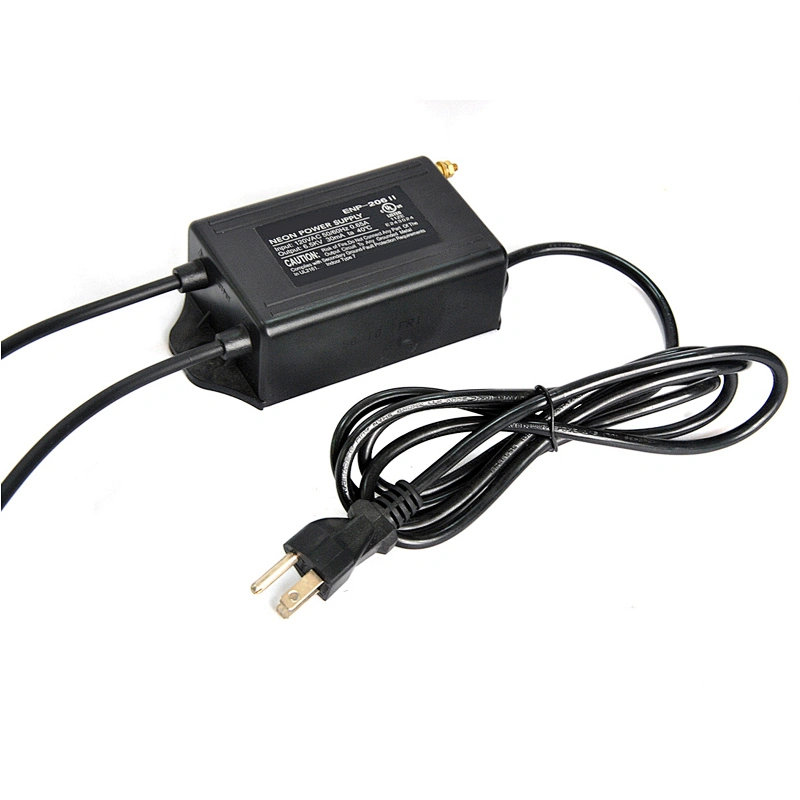

| ENP-206II | 120V AC 50/60Hz | 0.65 | ≥90 | 30 | 6.5 | 0.78 | 156 ×77× 47 |

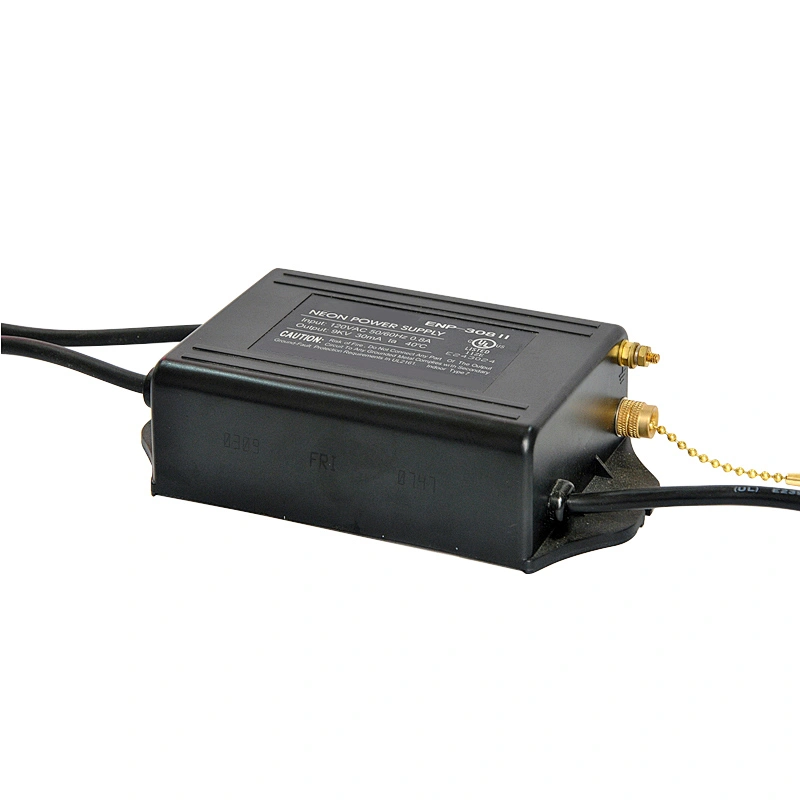

| ENP-308II | 120V AC 50/60Hz | 0.80 | ≥90 | 30 | 9 | 1.05 | 172 ×94× 47 |

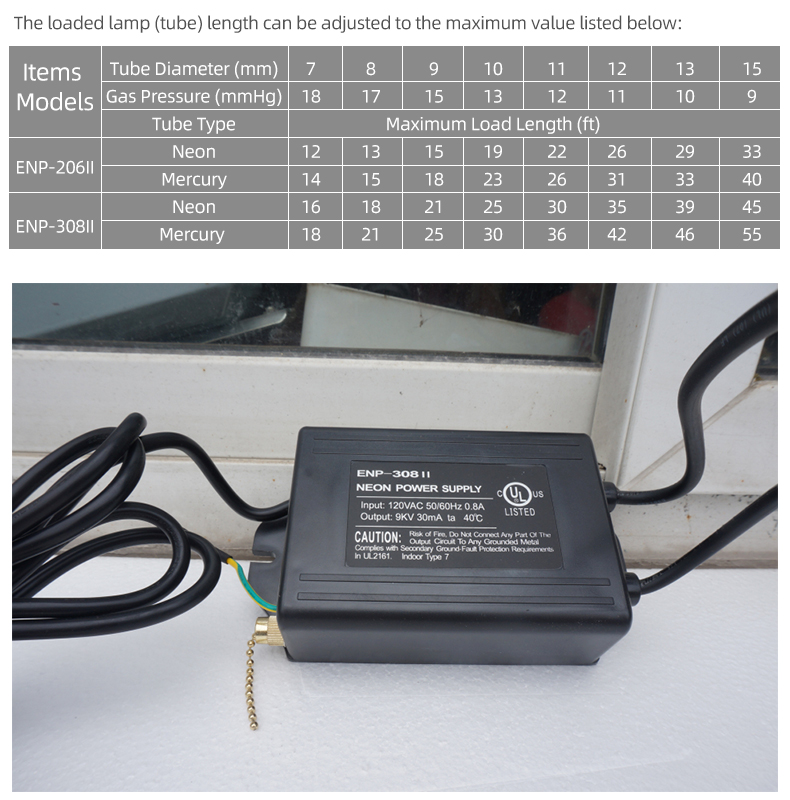

The loaded lamp (tube) length can be adjusted to the maximum value listed below:
Items Models | Tube Diameter (mm) | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 15 |
| Gas Pressure (mmHg) | 18 | 17 | 15 | 13 | 12 | 11 | 10 | 9 | |
| Tube Type | Maximum Load Length (ft) | ||||||||
| ENP-206II | Neon | 12 | 13 | 15 | 19 | 22 | 26 | 29 | 33 |
| Mercury | 14 | 15 | 18 | 23 | 26 | 31 | 33 | 40 | |
| ENP-308II | Neon | 16 | 18 | 21 | 25 | 30 | 35 | 39 | 45 |
| Mercury | 18 | 21 | 25 | 30 | 36 | 42 | 46 | 55 | |
Send Message
Related Products

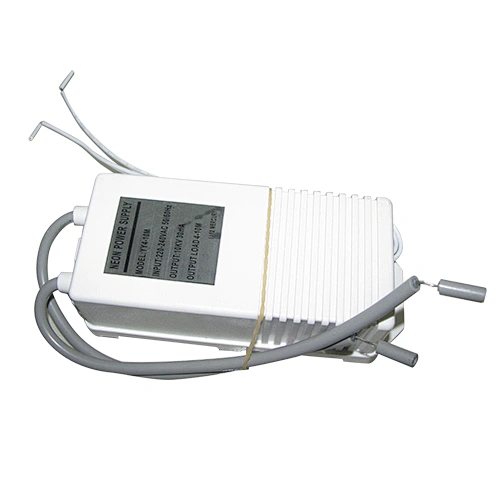

Model NO. YY2-6M、YY4-10M、YY4-12M
