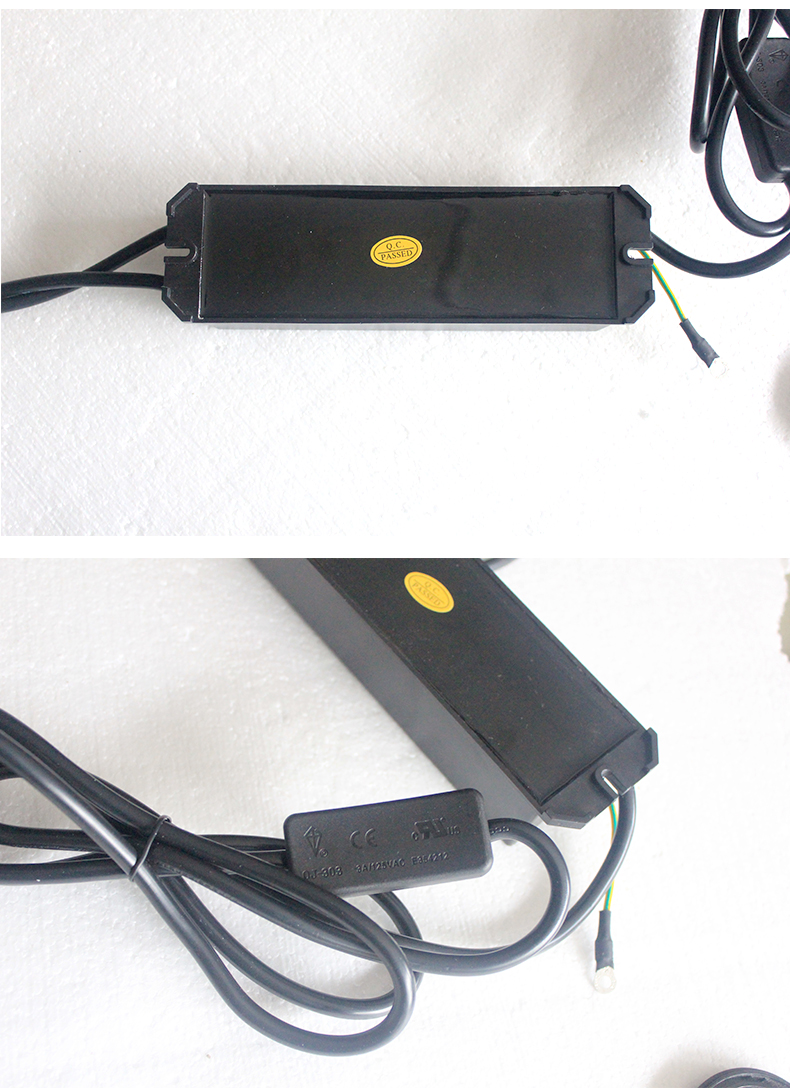

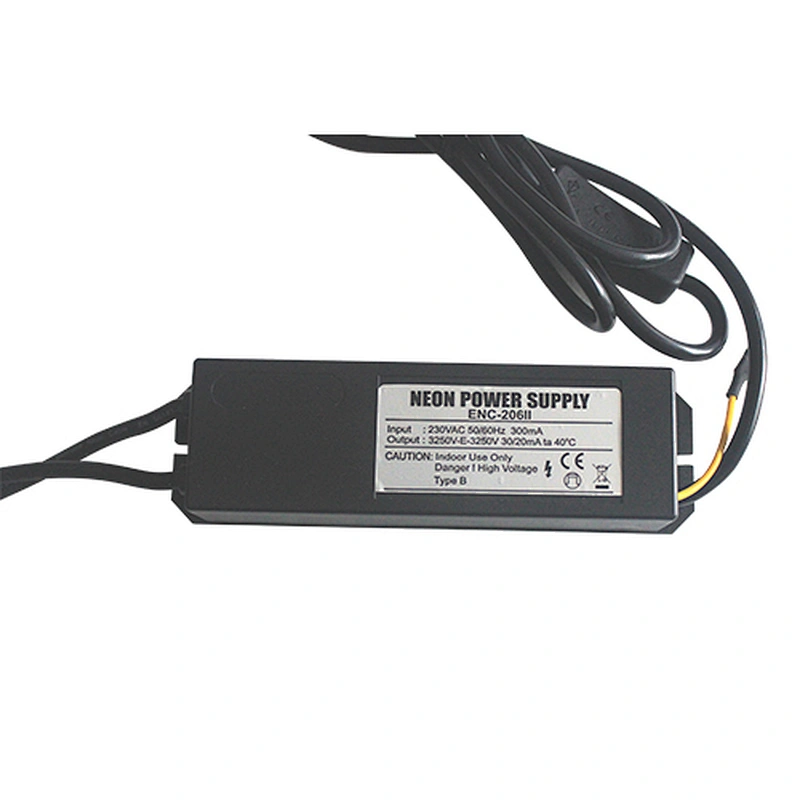

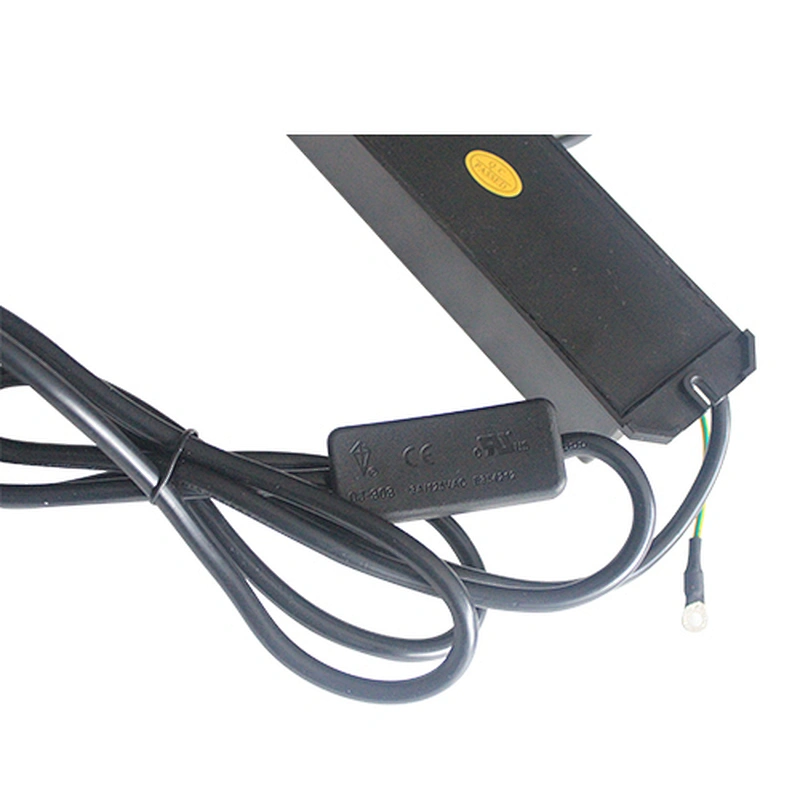

CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard
CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard

CE 6kV Electronic Neon Transformer Compliance with EMC LVD IEC standard

Model NO.
ENC
Quantity:
Product Features:
1.Use epoxy resin vacuum filled;
2.High power factor and low electromagnetic interference;
3.Built-in overload and open-circuit protection device;
4.Complied with secondary Ground-Fault protection request;
5.DM type provided with manual adjustment function of light brightness;
6.Energy Saving, Light weight safety and reliability.

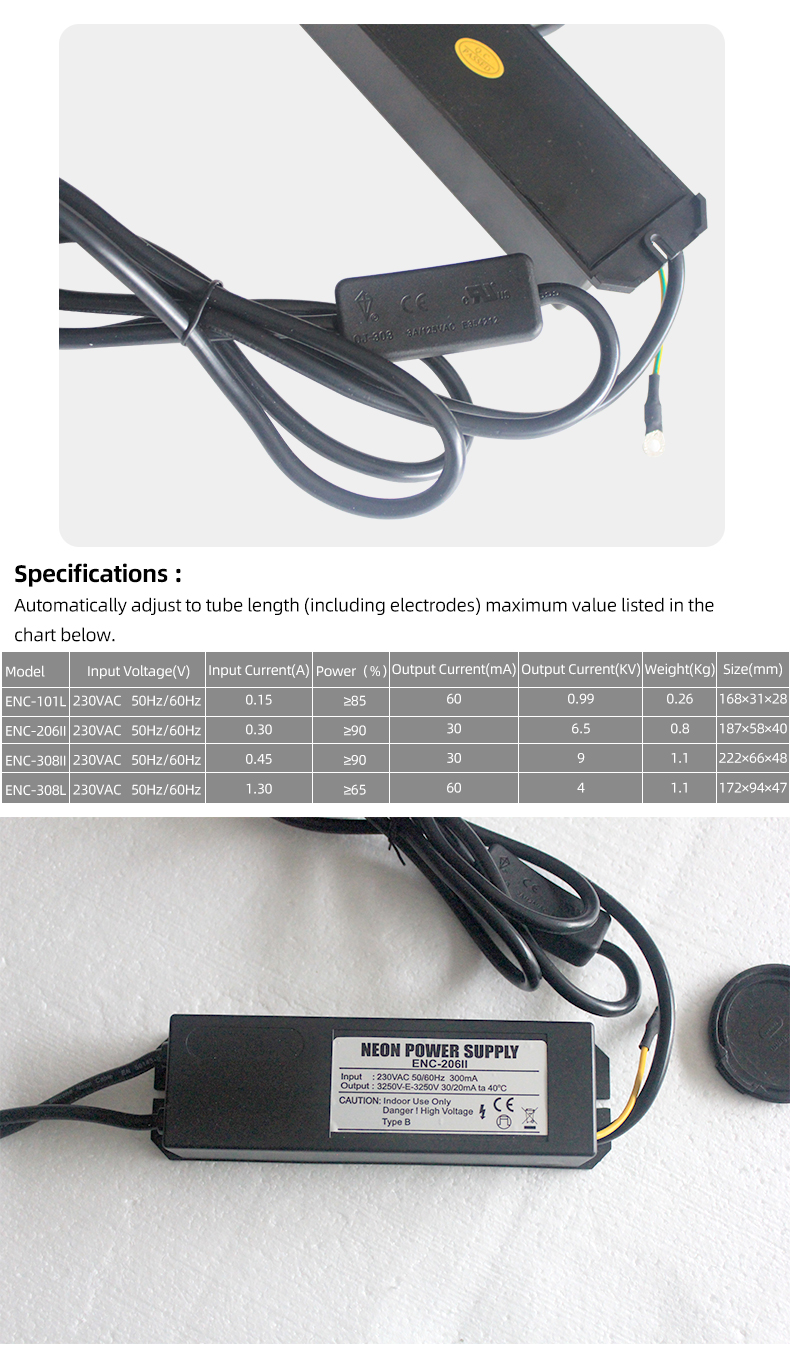

Specifications :
Automatically adjust to tube length (including electrodes) maximum value listed in the chart below.
Model Input Voltage(V)Input Current(A)Power（%）
Output Current(mA)
Output Current(KV)
Weight(Kg)
Size(mm)
ENC-101L230VAC
50Hz/60Hz		0.15≥85600.990.26168×31×28
ENC-206II230VAC
50Hz/60Hz		0.30≥90306.50.8187×58×40
ENC-308II230VAC
50Hz/60Hz		0.45≥903091.1222×66×48
ENC-308L230VAC
50Hz/60Hz		1.30≥656041.1172×94×47









Send Message

* clear input
* clear input
* clear input
* clear input
* clear input
* clear input
*
*
* clear input
* clear input
* clear input
* clear input
* clear input
* clear input
* clear input
* clear input
* clear input
* clear input

Related Products

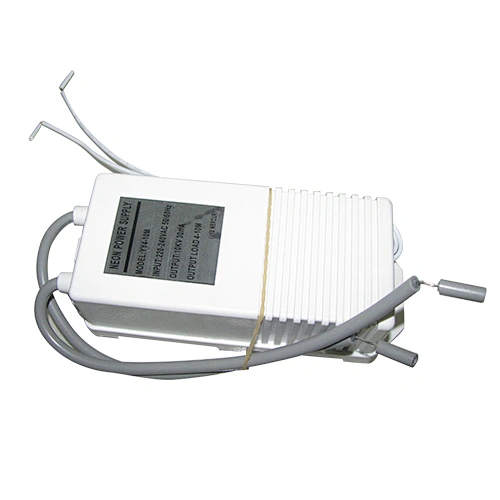

YY series Electronic Neon Transformer neon power supply
YY series Electronic Neon Transformer neon power supply
Model NO. YY2-6M、YY4-10M、YY4-12M

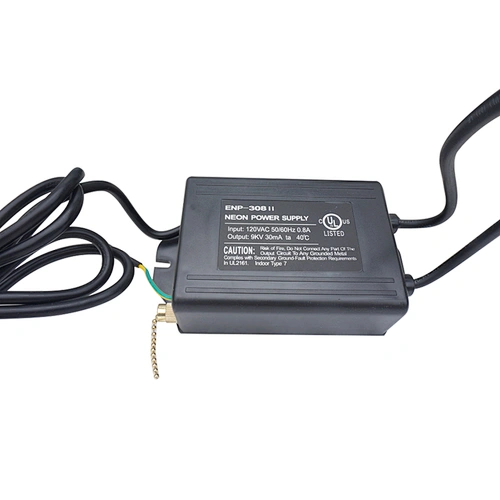

9KV 30mA UL Listed Neon Power Supply
